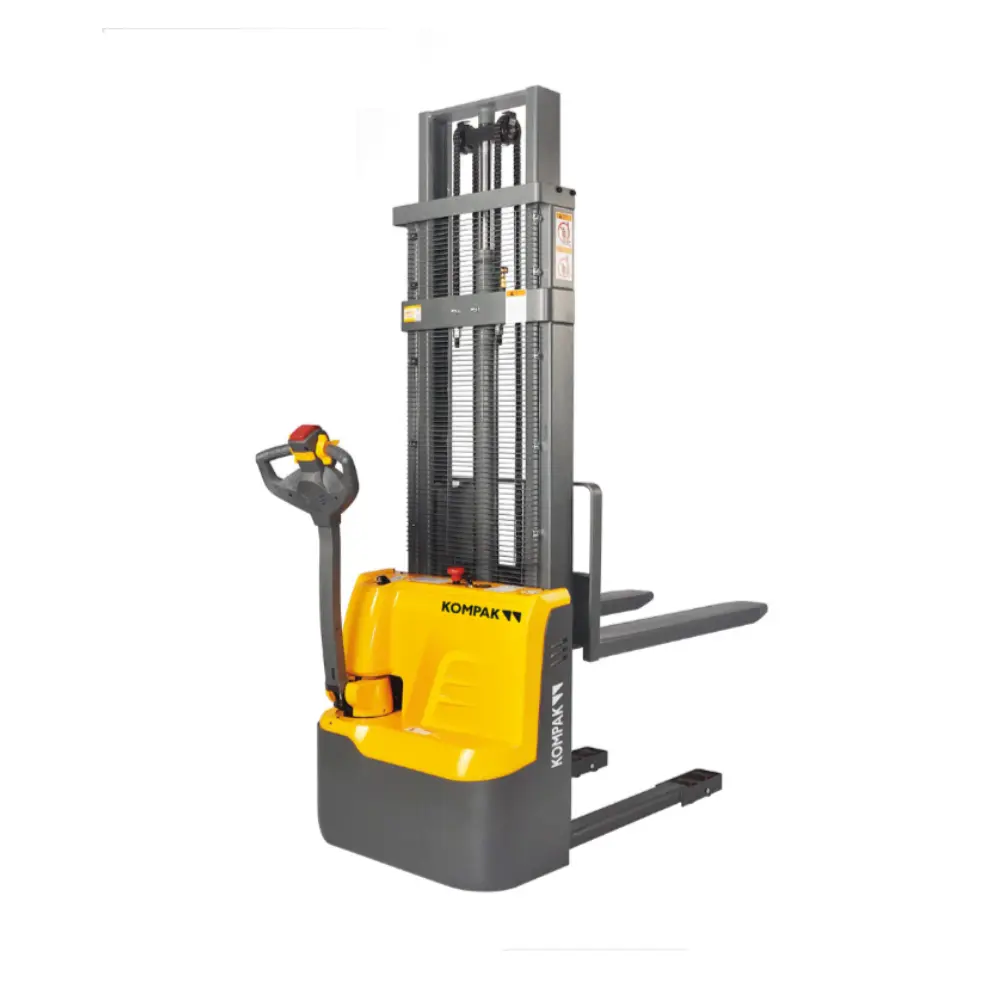

The Kompak Electric Stacker has a great capacity to support loads up to 1000 kg! Electric model with an incredible maximum lifting height of 3,200 mm and a ground clearance of 26 mm. Very light and compact with a small turning radius, this incredible stacker was designed for use inside small shops and supermarkets. This Kompak model is suitable for low-level stacking and short-distance transport.

The turning radius (1365 mm) and the aisle width are small and similarto those of a manual forklift.

Equipped with a charger to facilitate access to the power source, a drive wheel and a gel battery.

Drive Unit

Small turning radius (1365 mm), integrated into the drive unit.
Easy replacement of the motor and the brake.

The stacker provides a lifting speed with load of 0.11 m/s and without load of 0.14 m/s. When descending with a load, the speed reaches 0.12 m/s, and without a load, 0.10 m/s.

Travel Speed with Load	4.5 km/h
Travel Speed without Load	5 km/h

Compact Design

With a compact design and small dimensions, the electric forklift provides excellent visibility to the user during work. It is equipped with 4 forks that offer better load stability. The ergonomic steering wheel, with 2 handles, consisting of a control panel with a detailed finish, is located at the rear and features an integrated design, making it easy to assemble and stabilize.

Technical Specifications

Load Distance	600 mm
Front Tire Diameter	195 x 70 mm
Rear Tire Diameter	80x70 mm
Aisle Width for 1000x1200 Pallets (Transverse)	2218 mm
Width of 800x1200 (Longitude) Pallet Aisle	2173 mm
Battery Dimensions	260 (330) x 168 (171) x 217 mm
