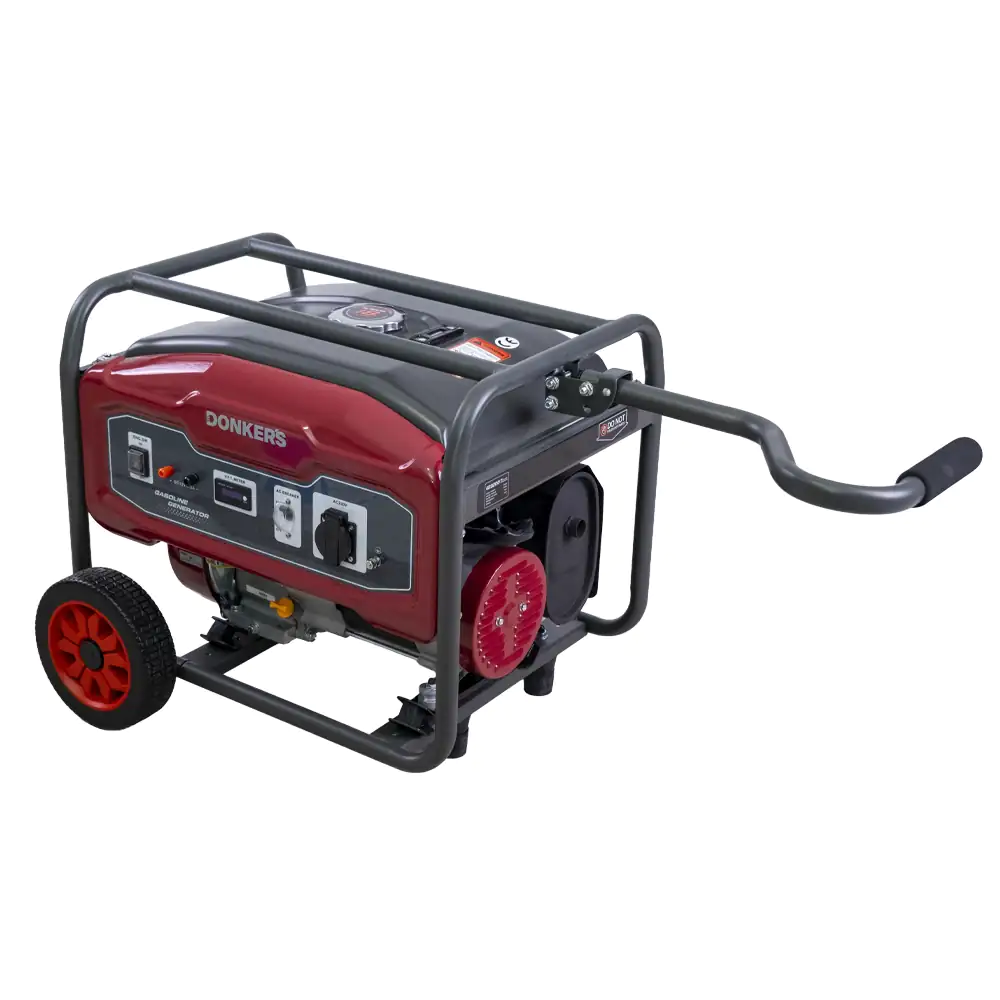

Donker's GD3200T 4kVA 230V Gasoline Generator

• 4-stroke single-cylinder gasoline engine OHV, air-cooled.

• Engine power: 7.0 HP / Engine displacement: 212 cc

• Nominal generator power: 3.5 kVA / Maximum power: 4 kVA

• Voltage regulation system AVR (Automatic Voltage Regulation).

• Ignition system CDI.

• Manual start

• Engine oil capacity 0.6L.

Engine oil level

The engine contains a small amount of oil when you purchase the generator. Before operating the equipment, please fill it with the appropriate amount of oil of the correct type. SAE 10W-30 motor oil is recommended for general use in all temperatures.

NOTE:Perform the check only when the unit is switched off and on a level surface.

Remove the oil filler cap and clean the dipstick

Insert the dipstick into the oil filler hole without screwing it in

If the oil level is below the lower mark on the dipstick, add oil until it reaches the upper mark

Retighten the oil filler cap/dipstick and secure it safely

Fuel Level

To ensure proper operation of the generator, it is recommended to fuel the engine with new unleaded gasoline or higher and follow the steps below.

1 - Place the unit on a level surface.

2 -Remove the fuel filler cap.

3 -Check the fuel level and add fuel if necessary. Be sure not to overfill!

WARNING! Fuel expansion in the tank can cause spills and possible fire or explosion. Please do not fill the tank to the brim; leave room for fuel expansion.

4 - Fill the fuel up to the shoulder of the filter/fuel filter.

5 - Replace the fuel filler cap and tighten it securely.

WARNING! Do not add a mixture of gasoline and engine oil intended for 2-stroke gasoline engines, and do not use old fuel. Prevent foreign objects such as dust, water, etc. from entering the tank. Empty the fuel from the tank and carburetor if the unit will not be used for a long period, as fuel degradation during prolonged storage can make it difficult to start the engine.

Warning: Danger!

• Carbon Monoxide - Do not operate the unit in enclosed or partially enclosed spaces, such as rooms, basements, garages, caves, tunnels, etc. Using a generator indoors (or in enclosed or partially enclosed spaces without good ventilation) CAN KILL IN MINUTES. The generator's exhaust gases contain carbon monoxide, a colorless, odorless, and deadly gas.

• Electric Shock - Do not operate the machine in humid conditions. The generator produces a high voltage; operating in humid conditions can cause electrocution.

• Fire and Equipment Damage - Do not connect the generator to the building's electrical circuit. Incorrect connections can damage the generator or cause a fire. Fire and/or Explosion - Keep flammable materials at least 1 meter away from the equipment. The generator produces heat during operation. Operating near flammable materials can overheat them, causing a fire. Gasoline and its vapors are highly flammable and explosive under certain conditions and can be easily ignited by cigarette butts, sparks, open flames, hot surfaces, etc. Take care to avoid fuel spills during refueling. Be sure to refuel only after switching off the engine. Burns - Be careful with hot surfaces. The muffler gets very hot during and immediately after engine operation. Accidental contact with hot surfaces, such as the silencer, can cause severe burns. Children - Keep children away from the unit while it is operating.
