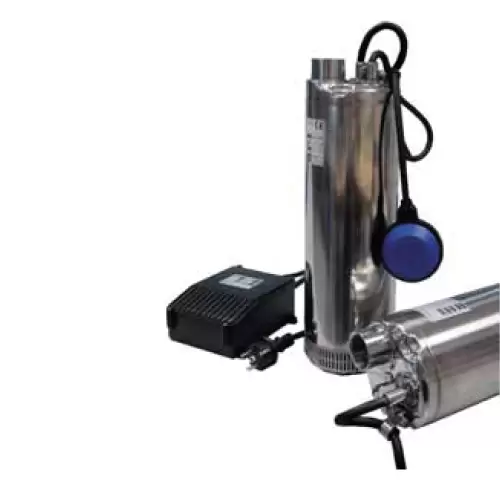

The electric motor of the SX 5/7 68mts 7,500l/h 1 1/4" Stainless Steel Submersible Pump was designed to offer high efficiency and durability in submerged applications.

It is a 2-pole asynchronous motor with an encapsulated stator and IP68 protection, ensuring safe and reliable operation even underwater.

With insulation class F, the motor offers excellent heat resistance, allowing continuous operation even in high temperature conditions.

The single-phase model operates at 230 V and 50 Hz, making it suitable for various uses.

It includes a permanent capacitor, supplied separately, and an electrical panel with thermal protection. The capacitor is integrated into the panel.

electric, ensuring automatic and safe operation, enhancing the efficiency of the electric pump.

The SX 5/7 68mts 7,500l/h 1 1/4" Submersible Stainless Steel Electric Pump is suitable for pumping clean, non-aggressive water, supporting liquids with a maximum temperature of 40°C and an immersion depth of up to 20 meters.

With a capacity of up to 20 starts per hour, it is ideal for continuous applications.

It supports liquids with up to 25 g/m³ of sand and suspended solids up to 2 mm in diameter.

It can be installed in a vertical or horizontal position, adapting to different usage conditions.

Connections: 1.1/4"

The SX 5/7 68m 7,500l/h 1 1/4" Stainless Steel Submersible Pump is built with high-quality materials, ensuring strength and durability.

The body, impellers, diffusers, upper and lower supports, suction grille, and motor inner casing are made of AISI 304 stainless steel, while the motor shaft uses AISI 431 stainless steel for greater robustness.

The double mechanical seal combines ceramic and graphite on the motor side, and graphite/SIC on the pump side, both protected in an oil chamber. The SX 5/7 Stainless Steel Submersible Pump includes 20 meters of H07RN-F submersible cable, ideal for safe and reliable installations.

The thermal protection box is responsible for constantly monitoring the motor temperature, ensuring that it operates within safe limits. In overheating situations, the thermal protection automatically interrupts the operation of the electric pump, thus preventing damage to the motor and extending the equipment's lifespan. This feature is especially important in continuous applications or in adverse working conditions, where the electric pump may be subjected to high loads or temperature variations.
