Submersible Pump for Large Wells UP 4/4 - GE Pedrollo

Submersible Pump for Large Wells UP 4/4 - GE Pedrollo

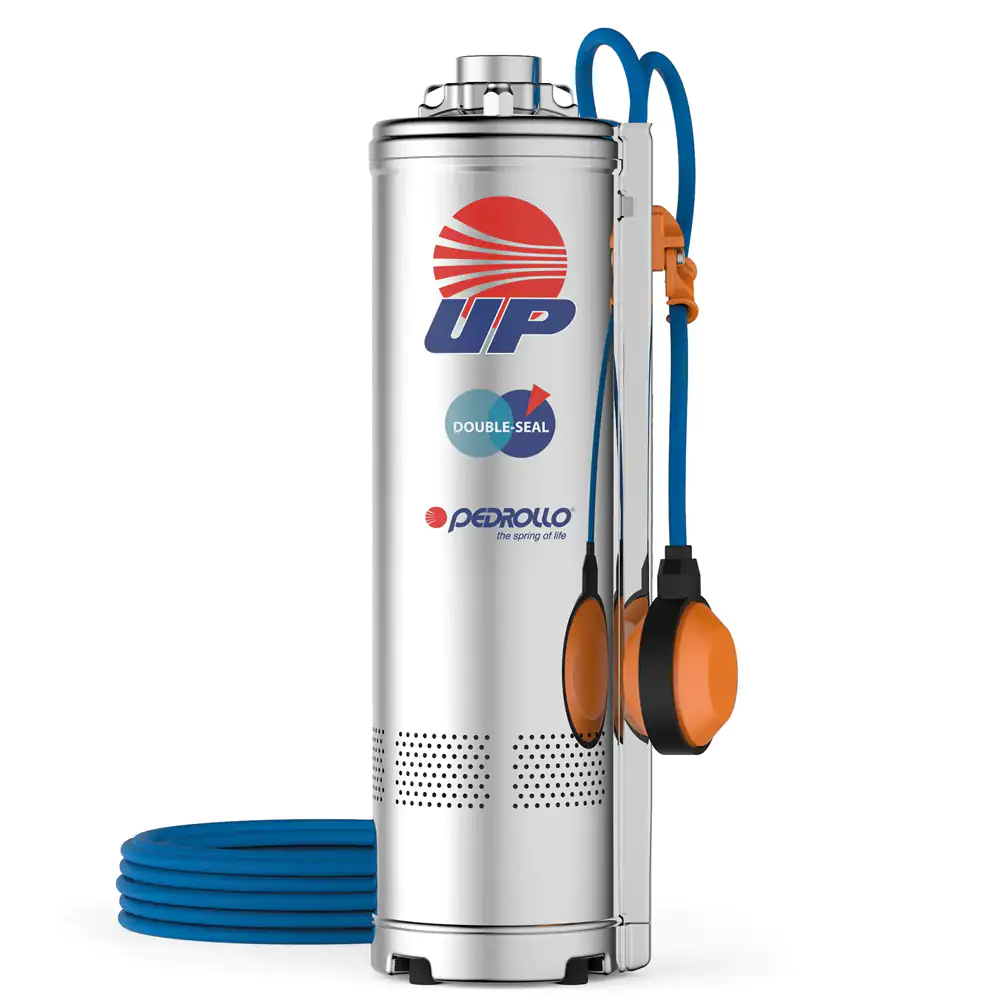

The Pedrollo submersible electric pump for wide wells from the UP line is part of a new line of multi-stage submersible electric pumps! They guarantee even more reliability, thanks to patented innovative technical solutions that prevent turbine blockage even after long periods of inactivity. Due to their high efficiency and build quality, these electric pumps are suitable for use with clean water in domestic, civil, agricultural and industrial applications, as well as for water distribution in pressure tanks, for irrigation of gardens and orchards and for pressure boosting, etc. Features: Stainless steel body • Noryl diffusers and turbines • Double oil chamber seal in silicon and graphite • Remaining components in stainless steel • Class F insulation • IP68 • Max. fluid temp. 40 ºC • Equipped with 20 m of cable • Max. depth Immersion depth: 20 m • Built-in thermal protection • Allows the passage of sands up to 150 g/m3 • Can be applied horizontally.

Note:Installation must be carried out by a qualified technician, according to the manufacturer's specifications. The installation of a magneto-thermal circuit breaker is mandatory. Failure to comply with these conditions may invalidate the equipment warranty.
