Centrifugal Electric Pump 1HP 1" 240V Termar XJW/10H

Ref: P009313
Free shipping on orders over 50€ and up to 30kg.
Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Prices include VAT.
Guaranteed Technical Assistance
Guaranteed Technical Assistance
Marcas de confiança.
Marcas de confiança.
179,00€ 229,99€
Promotion de 18/09/2026 a 25/09/2026
Free Shipping - Mainland Portugal
Product added to cart!
It is not possible to add more of this product to your cart!

Maximum Inlet Temperature
Maximum Inlet Temperature 40ºC
Maximum Liquid Temperature
Maximum Liquid Temperature 40ºC
Maximum Suction Depth
Maximum Suction Depth 9M
Maximum Flow Rate
Maximum Flow Rate 3600L/h
Exit Curve Diameter
Exit Curve Diameter 1"
Suction Diameter
Suction Diameter 1"
Power
Power 1HP
Voltage
Voltage 240V

Free shipping on orders over 50€ and up to 30kg.
Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Prices include VAT.
Guaranteed Technical Assistance
Guaranteed Technical Assistance
Marca de Confiança

What kind of work do you intend to do?

Leave us your contact information, and a specialist will get in touch.


Your message has been sent successfully!
Description
Product Reviews
Forum
Centrifugal Electric Pump 1HP 1" 240V Termar XJW/10H
Termar XJW/10H 1HP 1" 240V Centrifugal Electric Pump

The Termar XJW/10H 1HP 1" 240V Centrifugal Electric Pump combines power and efficiency, guaranteeing effective water pumping.

The maximum flow rate of 3600 L/H along with the manometric head up to 56 MCA ensure efficient performance during water pumping.

Equipped with a Noryl turbine, stainless steel shaft, 1" suction and outlet connection and a suction depth up to 9 M, it offers resistance, durability and easy installation.

IPX4 protection protects the electric pump against water splashes, contributing to safer use, especially in demanding environments.

The centrifugal configuration offers efficient pumping and allows for the reliable movement of large volumes of water.

Note:Installation must be carried out by a qualified technician, according to the manufacturer's specifications. The installation of a magneto-thermal circuit breaker is mandatory. Failure to comply with these conditions may invalidate the equipment warranty.

Centrifugal Electric Pump 1HP 1

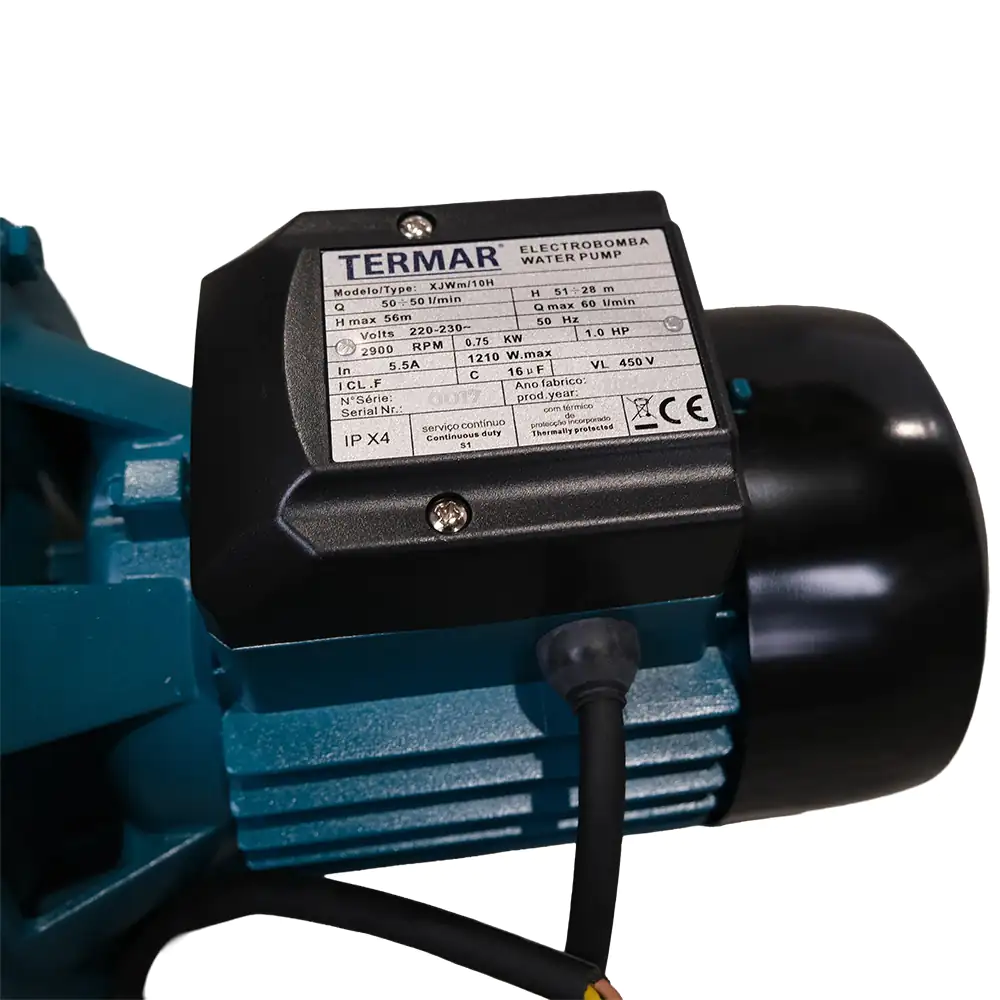

Electric Motor

Electric Motor

The Termar XJW/10H 1HP 1" 230V Centrifugal Electric Pump is equipped with a 240V 1HP electric motor that offers the ideal power to ensure efficient performance during water pumping. It features thermal protection that automatically shuts off the motor in case of overheating, providing greater safety and durability.
Voltage 240 V
Power 1 HP

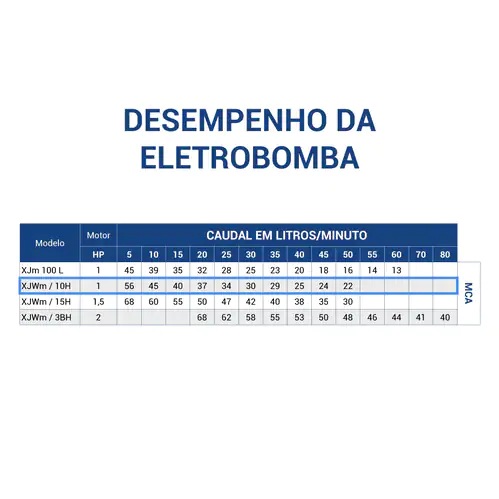

Performance of the Electric Pump

Performance of the Electric Pump

The color Blue, in the table, shows the performance of the Termar XJW/10H 1HP 1" 230V Centrifugal Electric Pump.

Flow Rate 3600-300 L/H
Manometric height 22-56 MCA
