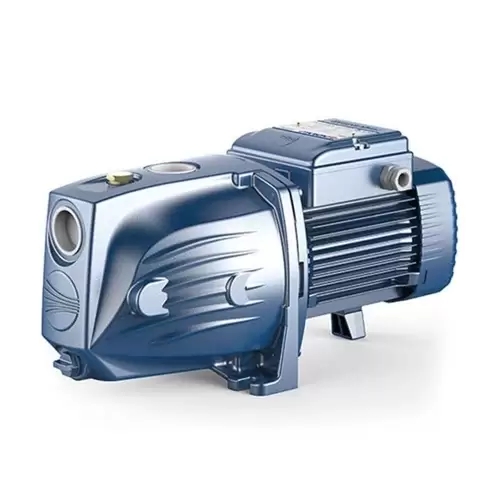

Centrifugal Electric Pump JSW 3AH Stainless Turbine 400V Pedrollo
Demanding Amateur
Ref: 1100254
Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Guaranteed Technical Assistance
Available for immediate delivery
604,80€
Free Shipping - Mainland Portugal
Product added to cart!
It is not possible to add more of this product to your cart!

Maximum Flow Rate 4800L/h
Type of Liquid Água Limpa
Elevation Height 88M
Power 3HP
Maximum Suction Depth 9M
Maximum Liquid Temperature 40ºC

Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Guaranteed Technical Assistance
Marca de Confiança

What kind of work do you intend to do?

Leave us your contact information, and a specialist will get in touch.


Your message has been sent successfully!
Description
Product Reviews
Forum
Documents for Download
Centrifugal Electric Pump JSW 3AH Stainless Turbine 400V Pedrollo
Pedrollo is a manufacturer of electric pumps that produces high-quality pumps.

JSW surface electric pumps are suitable for use with clean water and liquids that are not chemically aggressive to the materials from which the pump is made.

JSW self-priming pumps are designed to pump water even in cases where air is present.

Due to their reliability and ease of use, they are recommended for use in domestic applications, such as water distribution in combination with small or medium-sized pressure sets, irrigation of gardens and vegetable gardens, etc.

Features
Centrifugal electric pump • Automatic fitting • Maximum suction 9 m • Electric motor with built-in thermal protection • Stainless steel shaft • Maximum fluid temperature 40 ºC • Maximum ambient temperature 40 ºC • IPX4.
Resources
Liquid Type: Clean Water

Uses: Domestic, civil, industrial

Applications: Water supply systems, fire fighting sets, washing systems, pressure systems, irrigation pumps, liquid transfer

Type: Surface

Family: Self-Priming

Performance Range:

  • Flow Rate: up to 160 l/min (9.6 m³/h)
  • Height: up to 97 m

Limit of Application:

  • Liquid Temperature: -10 °C to +40 °C
  • Ambient Temperature: +40 °C
  • Manometric Suction Head: up to 9 m (HS)
  • Max. Working Pressure: 10 bar
  • Continuous Service S1
Hydraulic Curve and Performance
Template Amperage HP L/H MCA Volts Ø Asp./Output
JSW 3AH 5.1 3 4800-600 52-88 400 1.1/4'' x 1
