Pedrollo CP210B 4HP 400V Centifugal Electric Pump

Semi-Professional Semi-Professional
Ref: 1100376
Free shipping on orders over 50€ and up to 30kg.
Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Prices include VAT.
Guaranteed Technical Assistance
Guaranteed Technical Assistance
Available for immediate delivery
Available for immediate delivery
965,60€
Product added to cart!
It is not possible to add more of this product to your cart!
Exit Curve Diameter
Exit Curve Diameter 1"
Suction Diameter
Suction Diameter 1.1/2"
Elevation Height
Elevation Height 53M
Maximum Flow Rate
Maximum Flow Rate 16000 L/h
Power
Power 4HP
Maximum Suction Depth
Maximum Suction Depth 7M
Type of Liquid
Type of Liquid Água Limpa
Maximum Liquid Temperature
Maximum Liquid Temperature 60ºC
Free shipping on orders over 50€ and up to 30kg.
Free shipping on orders over 50€ and up to 30kg.
Prices include VAT.
Prices include VAT.
Guaranteed Technical Assistance
Guaranteed Technical Assistance
Marca de Confiança

What kind of work do you intend to do?

Leave us your contact information, and a specialist will get in touch.


Your message has been sent successfully!
Description
Product Reviews
Forum
Documents for Download

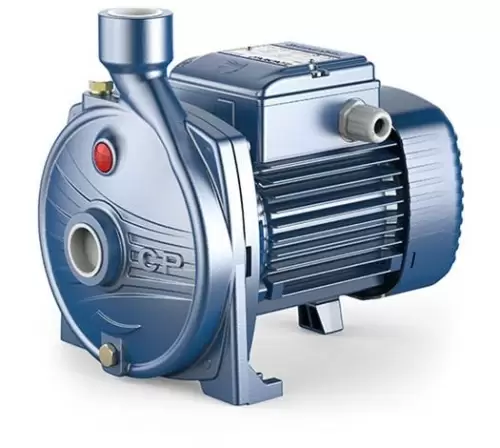

Pedrollo CP210B 4HP 400V Centifugal Electric Pump
Pedrollo CP range centrifugal pumps are suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive to the materials from which the pump is made.


Thanks to their reliability, ease of use and economy, they are widely used in the civil, agricultural and industrial sectors for water supply, air conditioning or cooling systems, irrigation, etc.

Installation should be carried out in enclosed locations or protected from the elements.

Pedrollo CP210B 4HP 400V Centifugal Electric Pump
Features
Centrifugal electric pump • Brass impeller • Cast iron impeller for CP 250 • Stainless steel shaft • Maximum suction 7 m • Maximum fluid temperature 90 ºC • Maximum ambient temperature 40 ºC • CP 210 IPX4, others IPX5. Note: Electric pumps from 7.5 hp (inclusive) onwards must be installed with a progressive starter to smooth the start and stop, reducing consumption and wear.
Resources
Liquid Type: Clean water

Uses: Civil, industrial, agriculture

Applications: Irrigation, cooling systems, air conditioning systems, water supply, water transfer, pressure systems

Type: Surface

Family: Centrifugal

Performance Range:

  • Flow Rate:up to 270 l/min (16.2 m³/h)
  • Manometric Head: up to 53 m

Application Limits:

  • Liquid Temperature: -10 °C to +60 °C
  • Max. Ambient Temperature: +40 °C
  • Manometric Suction Head: 7 m
  • Max. Working Pressure: 5.3 bar
  • Continuous Service S1
Hydraulic Curve
Model Amperage HP L/H MCA Volts

Asp./Output
CP 210 B 6.5 4 16200-3000 34-53 400V 1.1/2” x 1
