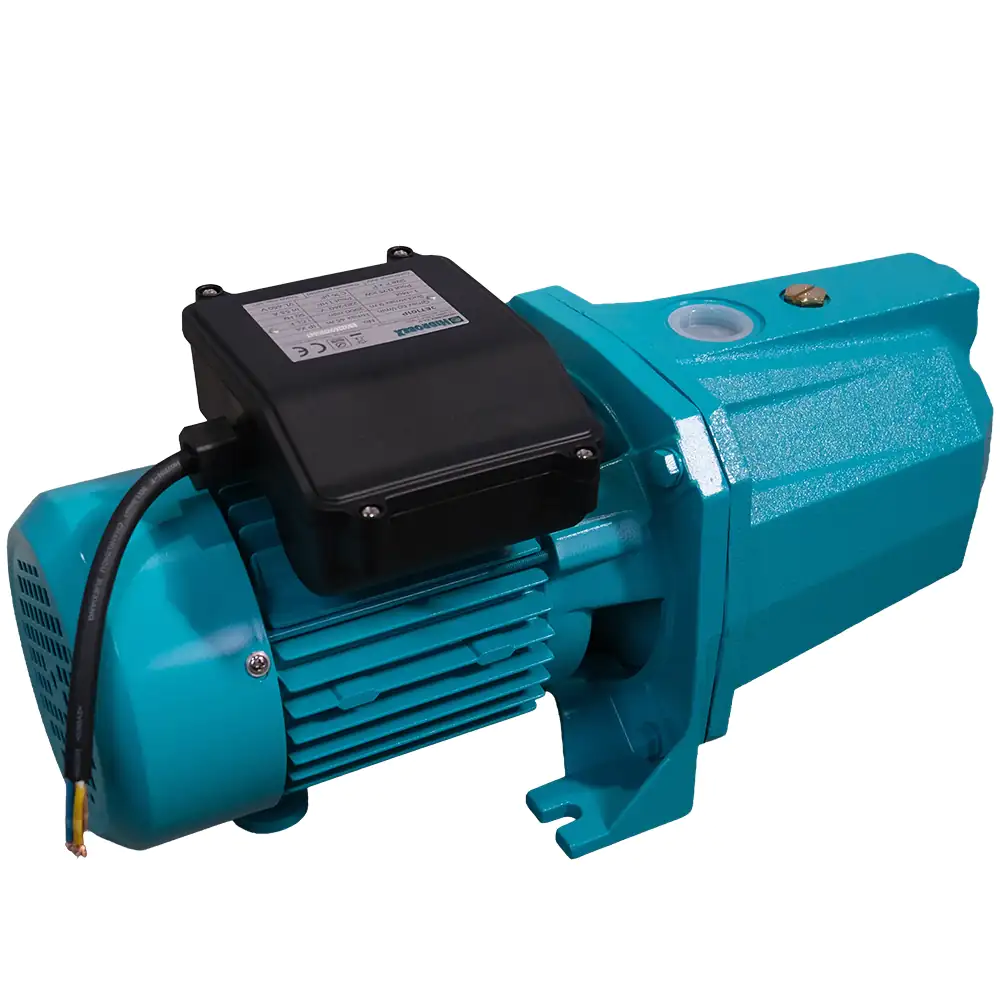

1HP JET 101P Surface Pump

The 1HP JET 101P Surface Pump was developed to guarantee a high suction capacity, even with small amounts of air or gas in the water.

With the JET-Venturi system which facilitates water intake and contributes to efficient and reliable operation. The self-priming function allows water to be drawn from an intake point located below the pump.

Ideal for use in clean water such as domestic applications, pressure pumps, garden irrigation and washing, due to its maximum flow rate of 120 L/min. and to a maximum manometric head of 60 m.

The robust construction and pump support, both in cast iron, and the brass turbine contribute to greater durability and resistance of the Surface Electric Pump.

Recommendation: For suction heads greater than 4 m, it is recommended to install a suction pipe with a diameter greater than 1 ½”.

Note: Installation must be carried out by a qualified technician, according to the manufacturer's specifications. The installation of a magneto-thermal circuit breaker is mandatory. Failure to comply with these conditions may invalidate the equipment warranty.

Electric Motor

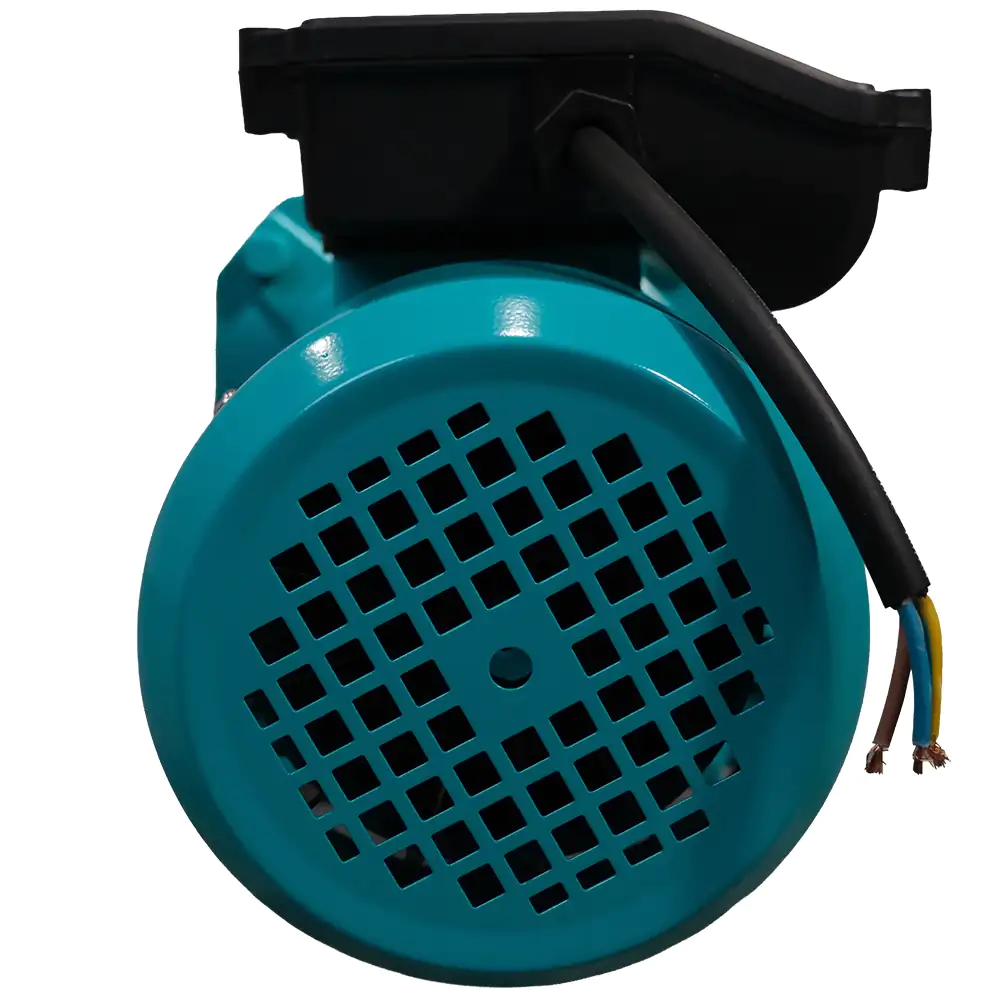

The 1HP JET 101P Surface Pump is equipped with a reliable, efficient, and durable 230V induction electric motor with a squirrel-cage rotor, offering reliable, long-lasting operation and low maintenance requirements. The motor is enclosed and self-ventilated, contributing to better heat dissipation. It is equipped with two poles, allowing the motor to reach a high rotational speed. The IPX4 protection protects the motor against splashes, while the thermal protection helps prevent potential damage caused by overheating, and the class F insulation ensures high thermal resistance, protecting the electrical components. Suitable for continuous operation!

Engine Type	Elétrico Monofásico
Voltage	230 V

Robust construction

The Surface Electric Pump was manufactured with resistant materials, offering high durability and wear resistance, especially in more demanding applications.

Brass turbine.

Ceramic/graphite mechanical seal.

Gray cast iron pump body and support.

AISI-416 stainless steel motor shaft.

Fiberglass reinforced Noryl diffuser and Venturi system (GFN2V).

Hydraulic Performance Curve

The maximum flow rate of 120 L/min contributes to efficiently moving a large quantity of water. The image represents the Hydraulic Performance Curve of the 1HP JET 101P Surface Pump.

Flow rate

120 L/min
