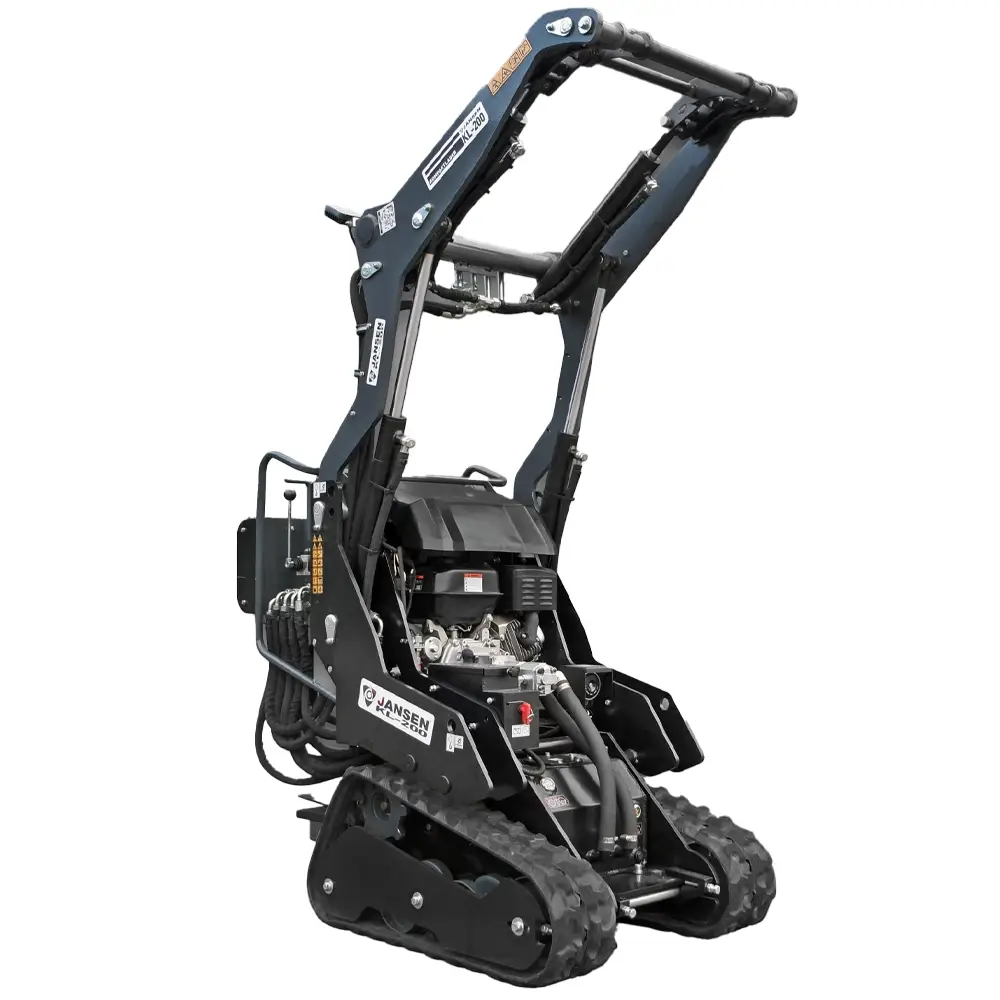

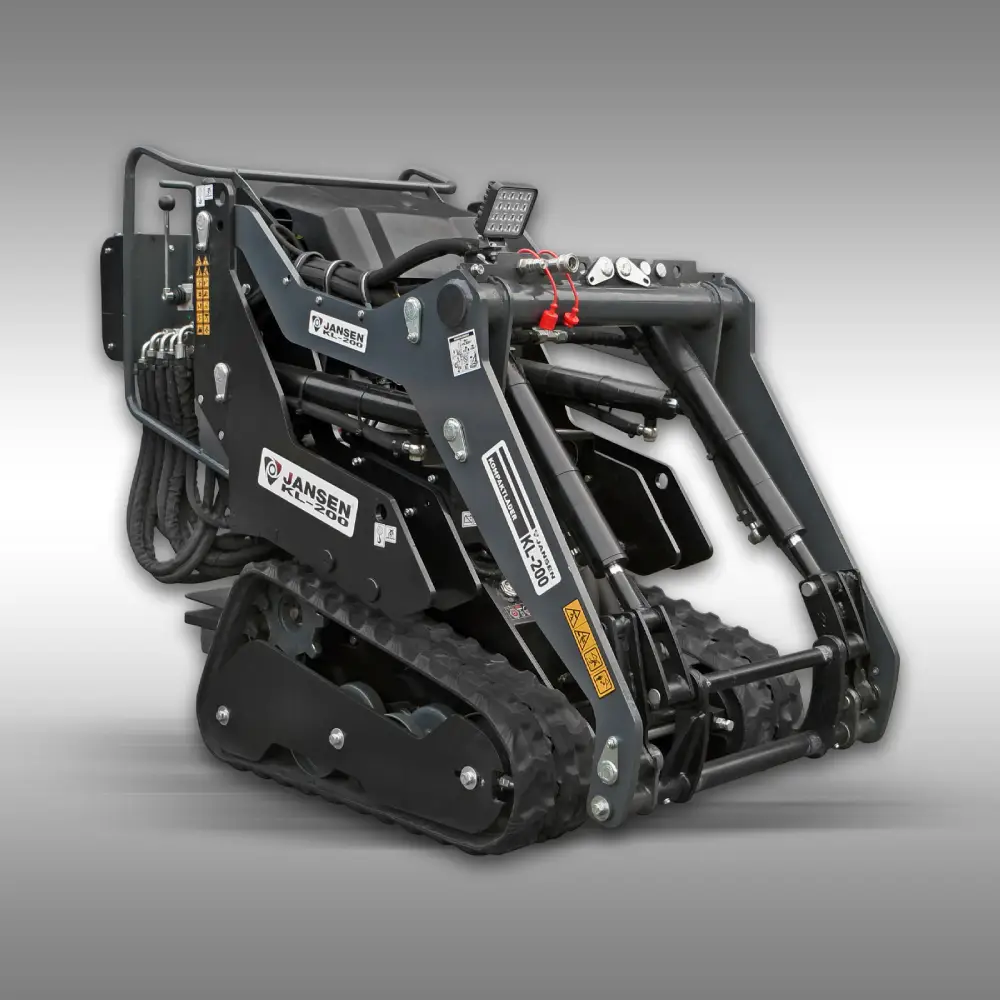

The Jansen KL-200 track loader was designed to offer maximum performance, versatility, and reliability in demanding professional tasks. Equipped with a robust track system and user platform, it stands out for its exceptional maneuverability and stability, even on uneven, slippery, or sloping terrain. The compact structure combined with solid construction makes it the ideal solution for demanding professionals, whether for use in construction, agricultural operations, landscaping, or material handling.

Engine

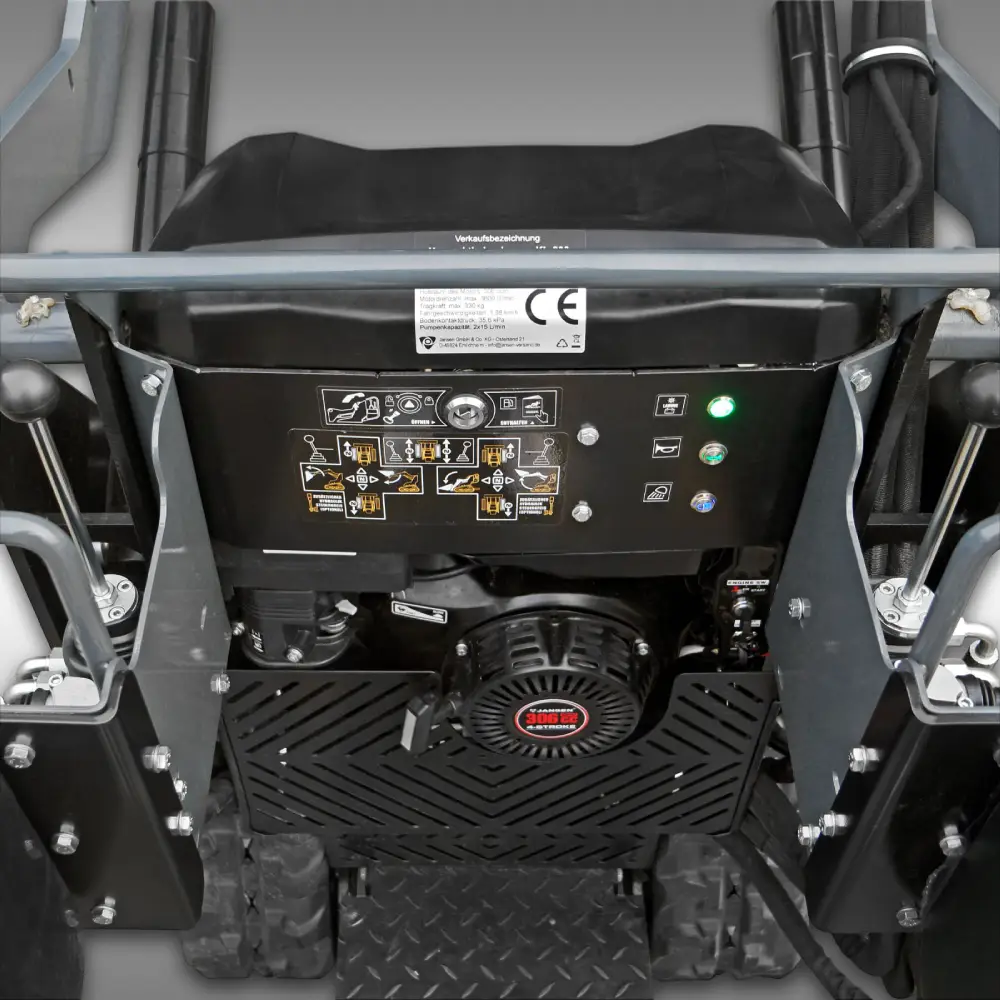

The Jansen KL-200 track loader features a 306 cc, 8.5 hp, 4-stroke gasoline engine at 3600 rpm. With electric start, it offers reliable power and easy starting, even in demanding conditions. The engine is compact and efficient, ensuring a good balance between performance, fuel consumption and durability.

Engine Type	Gasolina 4T
Start-up type	Elétrico

Work Capacity

With a maximum load capacity of 330 kg and the ability to lift loads up to 2 meters high, it is ideal for various demanding tasks, from lifting and transporting loads to moving cargo. The travel speed, capable of reaching up to 2.5 km/h, ensures controlled and safe operations.

Maximum Load Capacity	330 Kg
Elevation Height	2 M

Hydraulic System

Equipped with a dual hydraulic system, consisting of two pumps with a capacity of 15 l/m each.

These pumps feed a reservoir with approximately 30 l of hydraulic oil.

This assembly allows for continuous and efficient operation of the machine, even in more intensive work, guaranteeing reliable performance.

Dimensions

The compact dimensions, 1395 mm long, 751 mm wide and 1200 mm high, facilitate work in confined spaces.

The operating weight of 730 kg (without accessories) offers stability and safety.

W x L x H

139,5 x 75,1 x 120 cm

Traces

The 180 mm rubber track system, along with a ground contact pressure of only 32 kPa, ensures even weight distribution. This configuration reduces soil compaction, improves traction, and ensures machine stability even on slippery or uneven terrain.

Accessories (not included)

Compatible with a wide range of optional accessories (not included):
