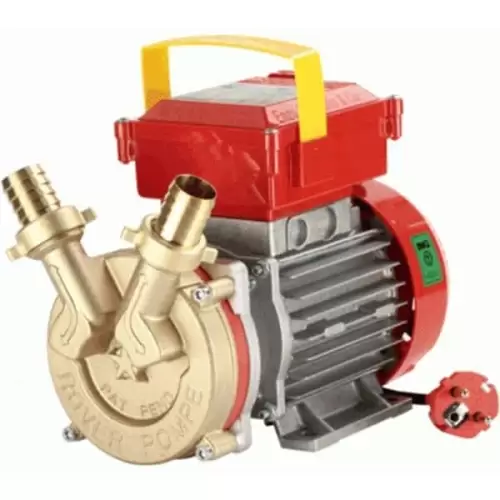

Rover BEM-25 Transfer Pump - 230V - Bomba Trasfega Rover BEM-25

Description

Demonstration Video

Product Reviews

Articles about the Product

Forum

Rover BEM-25 Transfer Pump – This particular type of hydraulic system gives it an extraordinary self-priming capacity, even in cases of discontinuous availability of the liquid to be transferred in the suction (presence of air or other gases).

Technical Specifications


Pump body	Brass casting
Impuller	Brass casting
Motor shaft	AISI 304 stainless steel
Accessories	Supplied with IO-II three-position switch, cable, connector and accessories
Fluid	Previously decanted liquids, such as: WATER, WINE, MUST, MILK, SEAWATER, DIESEL, ADBLUE, OIL, etc. whose viscosity does not exceed 4º Engler. The liquids to be transferred must be clean, without suspended solids or containing only a minimal amount of suspended solid particles with hardness and granulometry characteristics such that they do not alter the smooth surfaces inside the pump. Liquid temperature 40 ºC max. – normal operation max. 60 ºC – Transfer operation only (no pressure) Maximum suction head 3 m (without foot valve) 8 m (with foot valve) Maximum solid particle content 0.5 mm Maximum flow rate 20 l/min Maximum height Maximum height m
Motor	2-pole induction 230 – 50 Hz
Thermal protection	Included
Insulation class	B
Protection rating	IPX4 or IP55

Hydraulic Curve and Performance

TYPE

AMPERS

RPM

LINKS

WEIGHT

Q (m ³ / h – l / min)

1 ~

(CV)

1 x 230V50 Hz

(mm)

(kg)

0.6

0.9

1.2

1.5

2.1

2.7

3.6

4.8

7.2

10.8

13.2

100

120

150

180

220

BEM-25

0.6

1.7

1450

H (m)

7.5

5.5

1.5

–

Questions and Answers

Questions

Product Reviews

Compare with similar products

Brand

Reference

Name

Price

Product Level

Voltagem (V)

Tipo de Motor

Altura de Elevação (M)

Caudal Máx. (L/h)

Dimensão Máx. das Partículas Sólidas (mm)

Altura de Elevação (M)

Temperatura Máx. do Líquido (ºC)

Tipo de Liquído

Material de Construção da Bomba

Profundidade Máx. de Sucção (M)

Diâmetro Máximo das Partículas

Altura Máx. de Descarga (cm)

BrandRover Pompe

Reference070355

NameRover BEM-25 Transfer Pump - 230V

Price129,00€

LevelDemanding Amateur

Voltage (V)230

Engine TypeIndução

Elevation Height (M)25

Maximum Flow Rate (L/h)250

Maximum Size of Solid Particles (mm)0.5

Maximum Liquid Temperature (ºC)40

Type of LiquidLíquidos Previamente Decantados

Pump Construction MaterialBrass

Maximum Suction Depth (M)

Maximum Particle Diameter

Maximum Discharge Height (cm)

BrandRover Pompe

Reference070362

NameRover BEM-30 Transfer Pump - 230V 1450 rpm

Price189,00€

LevelDemanding Amateur

Voltage (V)

Engine Type

Elevation Height (M)

Maximum Flow Rate (L/h)80 l/min

Maximum Size of Solid Particles (mm)

Maximum Liquid Temperature (ºC)60

Type of LiquidLíquidos Limpos

Pump Construction Material

Maximum Suction Depth (M)0

Maximum Particle Diameter0

Maximum Discharge Height (cm)0
