Pedrollo is a manufacturer of electric pumps that produces high-quality stainless steel pumps.
Pedrollo's 4″ submersible pumps are suitable for pumping clean water for many applications, such as domestic supply, irrigation for greenhouses, farms, and water systems for homes and pressurization.
The submersible electric pump features a robust and durable design, built with high-quality materials to ensure exceptional performance even in corrosive environments. The AISI 316 stainless steel casing and duplex stainless steel shaft offer high corrosion resistance, guaranteeing a long service life.
The oscillating turbines, adjustable to axial movement, ensure smooth operation and prevent blockages.With high-quality components, including noryl diffusers and a stainless steel diffuser cover, it can operate at temperatures up to 35°C, with an impressive immersion limit of 100 meters. It supports up to 20 starts per hour, demonstrating its reliability and efficiency in different scenarios.
• Hydraulic casing, discharge head, motor assembly support and power cable guard made of high-quality stainless steel • Oscillating turbines adjustable to axial movement that prevent blockage • Diffusers and turbines made of Noryl • Require no maintenance
The manufacture and design of these products takes place at Pedrollo S.p.a., a company that stands out for its high specialization in the manufacture of components for the pumping industry worldwide. Pedrollo borehole pumps stand out for their reliability and performance, used by leading manufacturers and distributors of pumping equipment in agricultural, industrial or residential applications.

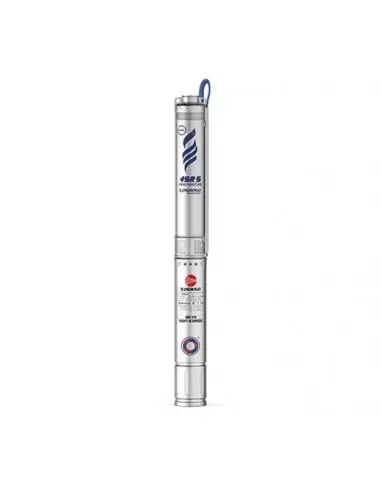

Pedrollo 4" submersible pumps are designed for civil, agricultural and industrial applications. The Pedrollo 4" submersible borehole pump consists of a multi-stage hydraulic unit coupled to a submersible motor. Particularly suited for use in artesian wells with a diameter of 4" (100 mm).
|
| BrandPedrollo |
| ReferenceP001524 |
| NamePedrollo 4SR 8/24 TPD Submersible Electric Pump – 161m – 12m³/h |
| Price1.250,00€ |
| Level |
| Type of LiquidÁgua Limpa |
| Number of Starts per Hour20 |
| Maximum Immersion Depth (M)100 |
| Maximum Liquid Temperature (ºC)35 |
| Voltage (V)400 |
| Exit Curve Diameter (")2 |
| Power (HP)5,5 |
| Maximum Flow Rate (L/h)200 |
| Elevation Height (M)161 |
| Engine TypeThree-phase electric |
|
| BrandPedrollo |
| Reference1105652 |
| NameSubmersible electric pump for borehole Pedrollo 4SR 6/17, Ture motor - 107mt - 9m³/h |
| Price799,20€ |
| LevelDemanding Amateur |
| Type of LiquidLíquidos Limpos |
| Number of Starts per Hour30 |
| Maximum Immersion Depth (M)150 |
| Maximum Liquid Temperature (ºC)35 |
| Voltage (V) |
| Exit Curve Diameter (")2 |
| Power (HP)3 |
| Maximum Flow Rate (L/h)9000 |
| Elevation Height (M)107 |
| Engine Type |
|
| BrandPedrollo |
| Reference1105697 |
| NameSubmersible electric pump for borehole Pedrollo 4SR 4/30, Ture motor - 228mt - 6m³/h |
| Price1.098,40€ |
| LevelDemanding Amateur |
| Type of LiquidLíquidos Limpos |
| Number of Starts per Hour |
| Maximum Immersion Depth (M)150 |
| Maximum Liquid Temperature (ºC)35 |
| Voltage (V)400 |
| Exit Curve Diameter (")1¼ |
| Power (HP)4 |
| Maximum Flow Rate (L/h)6000 |
| Elevation Height (M)228 |
| Engine Type |
