Donker's SK3300 1200 KG 3.3M Electric Stacker
It is an electric stacker manufactured to optimize the handling and storage of goods in warehouses, logistics centers and industrial environments. Equipped with a brushless AC motor and a load capacity of up to 1200 kg, this equipment allows you to lift and transport pallets with total efficiency. One of the main advantages of this stacker is the initial lift function, which increases the ground clearance of the load legs and facilitates movement on ramps, dock levelers or uneven surfaces. Furthermore, the design allows for the simultaneous transport of two pallets, thus making logistics processes faster and more efficient. The drive system was developed to provide excellent stability thanks to the four-point support structure and low center of gravity. The electromagnetic brake ensures safe stops and effective control on ramps, while the mast with side cylinders provides wide visibility to the operator during lifting operations. Thanks to the compact turning radius and vertical drive wheel, this equipment is easy to maneuver in narrow aisles and limited spaces. The 24V battery ensures sufficient autonomy for long work shifts, while the components have been designed for simple maintenance and quiet operation.
It is a professional solution for companies looking to improve efficiency in pallet handling and the organization of goods at height! To request a shipping quote, contact us at 232 424 626! Electrical plug, charger, and included accessories!
Load capacity up to 1200 Kg
Initial Lift System
Possibility of transporting two pallets simultaneously
4-point support structure with Low center of gravity
Brushless AC traction motor protected against dust and water
Efficient electromagnetic brake
Vertical drive wheel with reduced turning radius

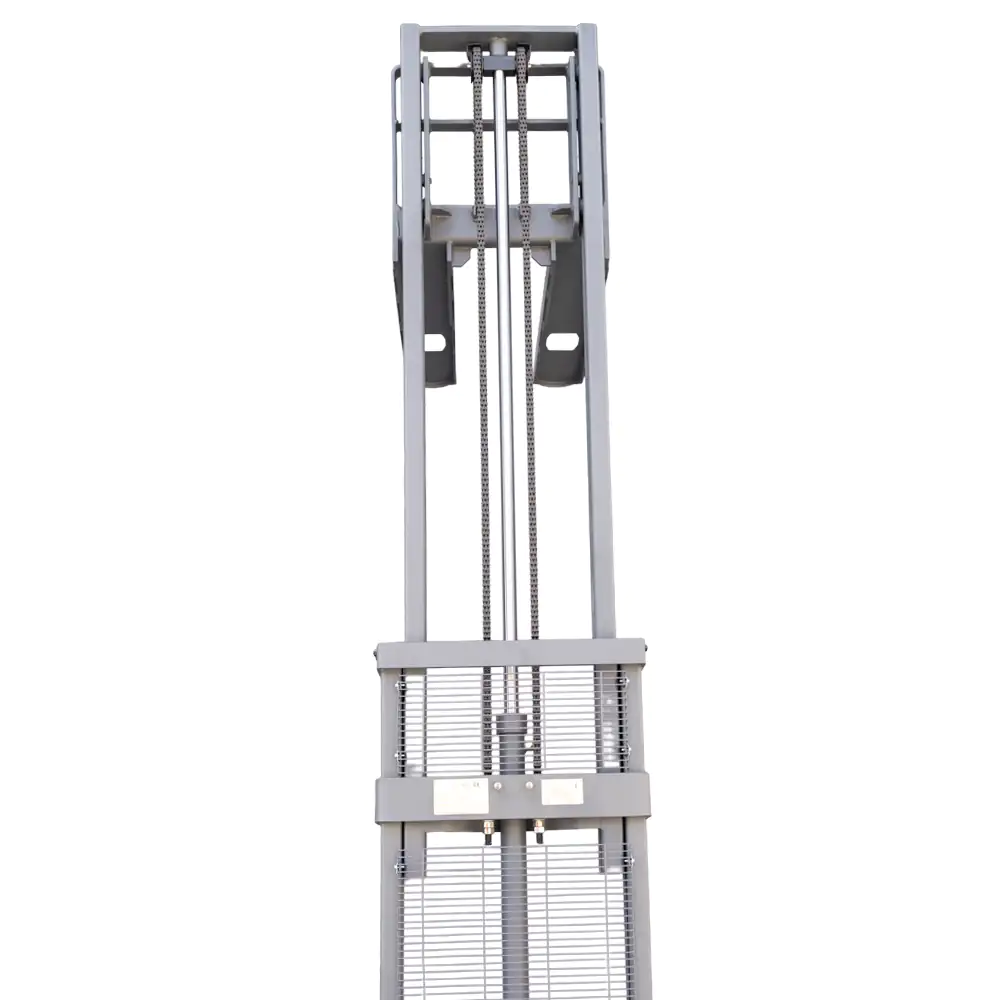

Mast with Free lift and side cylinders 24V battery with long range Maximum lifting height up to 3.3 meters Travel speed up to 6 km/h Free lift and side cylinders
| Load Capacity | 1200 Kg |
| Load distance, from the center of the drive shaft to the fork | 788 mm |
| Max. Elevation height | 3.3 meters |
| Wheelbase | 1268 mm |
| Front/rear tire size | 195 x 70 mm / 80 x 70 mm mm |
| Additional wheels | 150 x 60 mm |
| Front / rear tread | 523 mm / 390 mm |
| Mast tall extended | 3.9 meters |
| Rotating radius | 145 cm |
| Brake | Electromagnetic |
| Noise level in the driver's seat | 70 dB(A) |
| Pallet aisle width: 100x120 cm across | 228.6 cm |
| Width of pallet aisle: 80x120 cm in the longitudinal direction | 222.4 cm |
| Voltage | 24 V |
| Amperage | 105 Ah |
| Battery weight | 70 Kg |
| Loader | Included |
| Total length | 1789 mm |
| Width total | 800 mm |
| Weight | 775 Kg |
| Reduced height | 90 mm |
| Ground clearance, wheelbase | 17 - 137 mm |
| Length to fork face | 639 mm |
| Wheel arm height | 82 / 202 mm |
| Drawbar height in minimum/maximum riding position | 670 / 1300 mm |
