Pedrollo is a manufacturer of electric pumps that produces high-quality pumps.

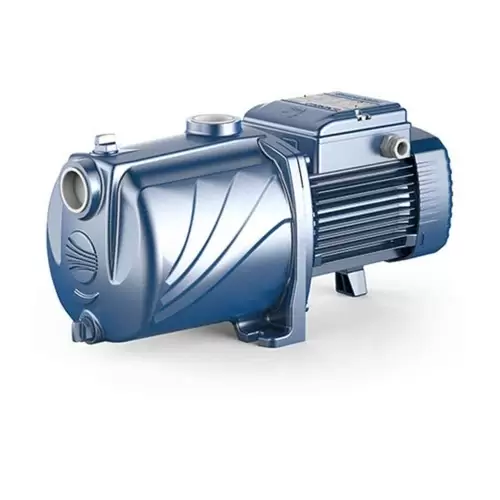

The 4CPm 100 electric pump is suitable for use with clean water and liquids that are not chemically aggressive to the materials from which the pump is made.

Due to their quiet operation, these pumps are widely used in domestic applications, such as water distribution in combination with small and medium-sized pressure sets, and for irrigation of gardens and plots, etc.

The pump should be installed in an enclosed environment, or at least protected from the elements.

Features

Multi-stage centrifugal electric pump • Low noise level • Noryl impeller • Stainless steel shaft • High efficiency • Low consumption • Electric motor with built-in thermal protection • Maximum suction 7 m • Maximum fluid temperature 40 ºC • Maximum ambient temperature 40 ºC • IPX4

Resources

Liquid Type: Clean Water

Uses: Domestic

Applications: Water supply systems, pressure systems, irrigation pumps

Type: Surface

Family: Horizontal multi-stage pumps

Performance Range:

Flow Rate: up to 130 l/min (7.8 m³/h)
Head: up to 67 m

Application Limit:

Ambient Temperature: up to 40 °C

Manometric Suction Head: up to 7 m
Liquid Temperature:

– between -10 °C and +40 °C for 2-5CP
– between -10 °C and +60 °C for 2-5CP-I

Max. Working Pressure:6 bar
Continuous Service S1

Hydraulic Curve and Performance

Template	Amperage	HP	L/H	MCA	Volts	Asp./Output
4Cpm 100	5.8	1	7800-300	5-50	240	1''

Questions and Answers

Questions

Document Listing

2-5CP_EN_50Hz.pdf Ficha Técnica

Product Reviews

Compare with similar products

Brand

Reference

Name

Price

Product Level

Altura de Elevação (M)

Tipo de Motor

Voltagem (V)

Caudal Máx. (L/h)

Diâmetro de Aspiração

Potência (HP)

Tipo de Liquído

Temperatura Máx. do Líquido (ºC)

Profundidade Máx. de Aspiração (M)

BrandPedrollo

Reference1100123

NameCentrifugal Electric Pump 4CPm 100 Pedrollo

Price329,00€

LevelDemanding Amateur

Elevation Height (M)67

Engine TypeSingle-phase electric

Voltage (V)240

Maximum Flow Rate (L/h)7800

Suction Diameter1''

Power (HP)1

Type of LiquidÁgua Limpa

Maximum Liquid Temperature (ºC)40

Maximum Suction Depth (M)

BrandPedrollo

Reference1100146

NameCentrifugal Electric Pump 5CPm 100l Pedrollo

Price384,80€

LevelDemanding Amateur

Elevation Height (M)67

Engine Type

Voltage (V)240

Maximum Flow Rate (L/h)7800

Suction Diameter1''

Power (HP)1,5

Type of LiquidÁgua Limpa

Maximum Liquid Temperature (ºC)40

Maximum Suction Depth (M)7
