Centrifugal Electric Pump 3Cpm 80 Pedrollo - Eletrobomba Centrífuga 3Cpm 80 Pedrollo

Description

Demonstration Video

Product Reviews

Articles about the Product

Forum

Documents for Download

Pedrollo is a manufacturer of electric pumps that produces high-quality pumps.

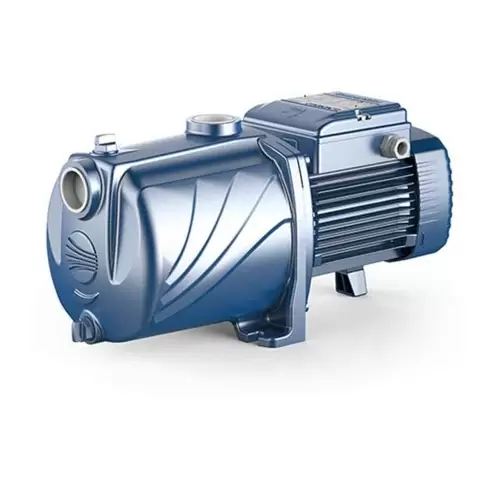

The 3Cpm 80 electric pump is suitable for use with clean water and liquids that are not chemically aggressive to the materials from which the pump is made.

Due to their quiet operation, these pumps are widely used in domestic applications, such as water distribution in combination with small and medium-sized pressure sets, and for irrigation of gardens and plots, etc.

The pump should be installed in an enclosed environment, or at least protected from the elements.

Features

Multi-stage centrifugal electric pump • Low noise level • Noryl impeller • Stainless steel shaft • High efficiency • Low consumption • Electric motor with built-in thermal protection • Maximum suction 7 m • Maximum fluid temperature 40 ºC • Maximum ambient temperature 40 ºC • IPX4.

Resources

Liquid Type: Clean Water

Uses: Domestic

Applications: Water supply systems, pressure systems, irrigation pumps

Type: Surface

Family: Horizontal multi-stage pumps

Performance Range:

Flow Rate: up to 130 l/min (7.8 m³/h)
Head: up to 67 m

Application Limit:

Ambient Temperature Up To: 40° C
Manometric Suction Head: up to 7 m
Liquid Temperature:

– between -10 °C and +40 °C for 2-5CP
– between -10 °C and +60 °C for 2-5CP-I

Max. Working Pressure: 6 bar
Continuous Service S1

Hydraulic Curve and Performance

Template	Amperage	HP	L/H	MCA	Volts	Asp./Output
3Cpm 80	3.1	0.6	4800-300	5-38	240	1''

Questions and Answers

Questions

Document Listing

2-5CP_EN_50Hz.pdf Ficha Técnica

Product Reviews

Compare with similar products

Brand

Reference

Name

Price

Product Level

Temperatura Máx. do Líquido (ºC)

Potência (HP)

Altura de Elevação (M)

Caudal Máx. (L/h)

Voltagem (V)

Diâmetro de Aspiração

Profundidade Máx. de Aspiração (M)

Tipo de Liquído

Tipo de Motor

BrandPedrollo

Reference1100100

NameCentrifugal Electric Pump 3Cpm 80 Pedrollo

Price249,60€

LevelDemanding Amateur

Maximum Liquid Temperature (ºC)40

Power (HP)0,6

Elevation Height (M)67

Maximum Flow Rate (L/h)7800

Voltage (V)240

Suction Diameter1''

Maximum Suction Depth (M)7

Type of LiquidÁgua Limpa

Engine Type

BrandPedrollo

Reference1100146

NameCentrifugal Electric Pump 5CPm 100l Pedrollo

Price384,80€

LevelDemanding Amateur

Maximum Liquid Temperature (ºC)40

Power (HP)1,5

Elevation Height (M)67

Maximum Flow Rate (L/h)7800

Voltage (V)240

Suction Diameter1''

Maximum Suction Depth (M)7

Type of LiquidÁgua Limpa

Engine Type

BrandPedrollo

Reference1100123

NameCentrifugal Electric Pump 4CPm 100 Pedrollo

Price329,00€

LevelDemanding Amateur

Maximum Liquid Temperature (ºC)40

Power (HP)1

Elevation Height (M)67

Maximum Flow Rate (L/h)7800

Voltage (V)240

Suction Diameter1''

Maximum Suction Depth (M)

Type of LiquidÁgua Limpa

Engine TypeSingle-phase electric
